5-Axis CNC Machining Center with Automatic Tool Changer (ATC)

Gantry CNC milling machine with automated tool magazine of 8/18 positions

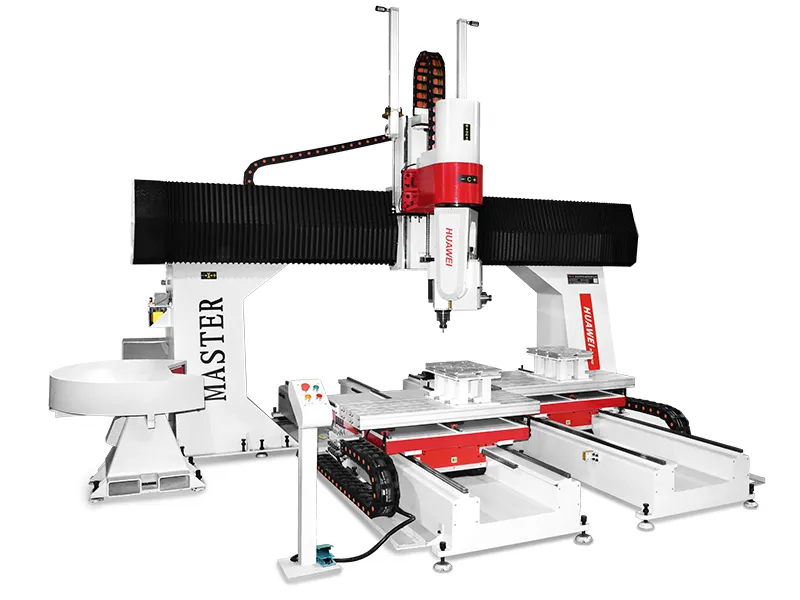

Meeting the demands of complex wood and composite material processing, the 5-axis CNC machining center with automatic tool changer (ATC) offers a seamless workflow through its dual-table system, allowing material loading on one table while processing continues on the other. This setup ensures continuous production without interruptions. With the capability to perform milling, drilling, sawing, and engraving in five axes, the machining system completes multiple operations in a single setup. Its automated tool magazine, with 18 positions, further enhances productivity by enabling quick and efficient tool changes, making it an ideal solution for high-volume production environments.

Request a Quote

Features

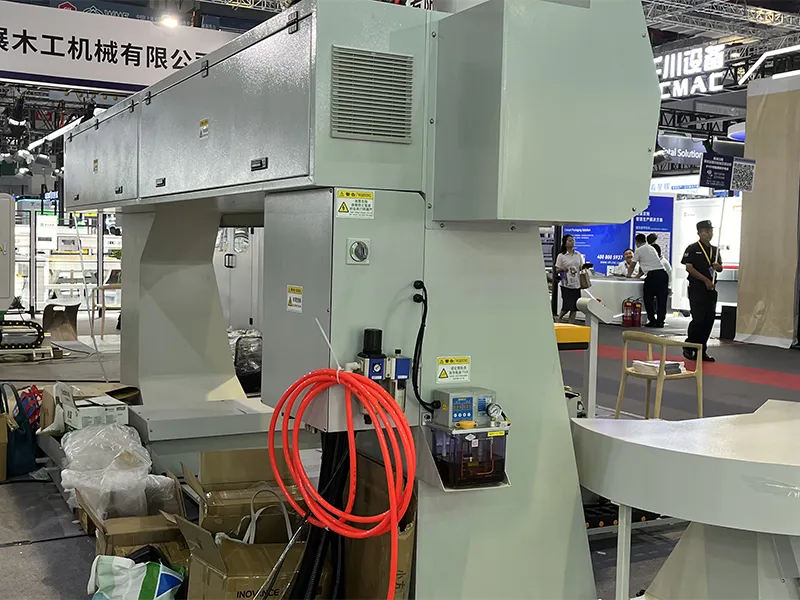

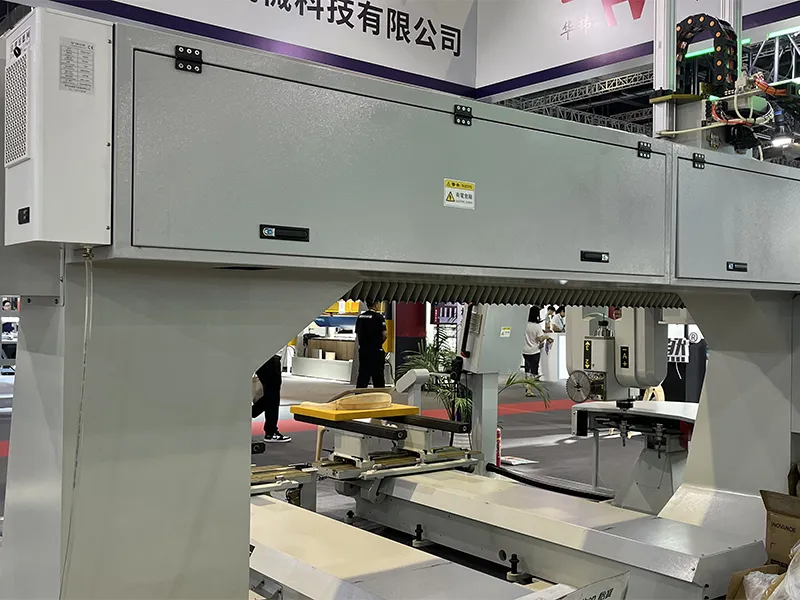

The dual-table design supports uninterrupted production by allowing material loading and unloading on one table while the other continues processing, ensuring continuous workflow.

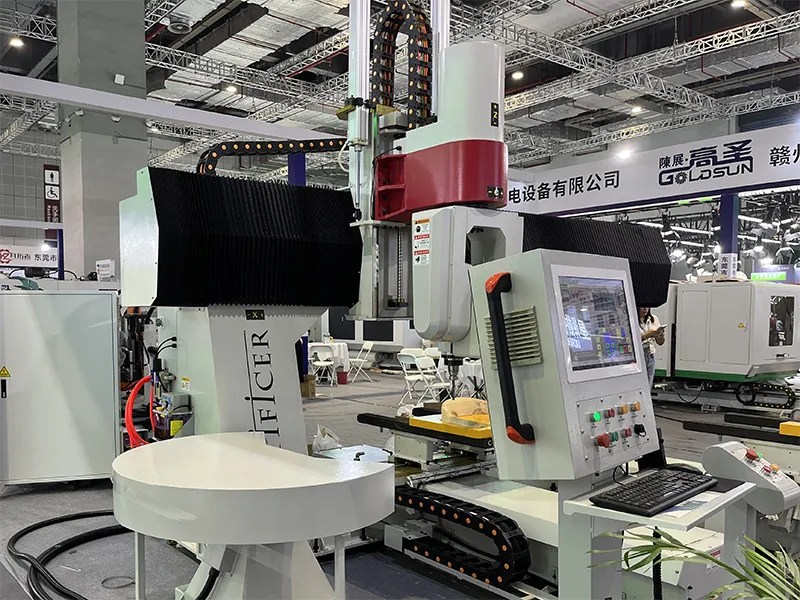

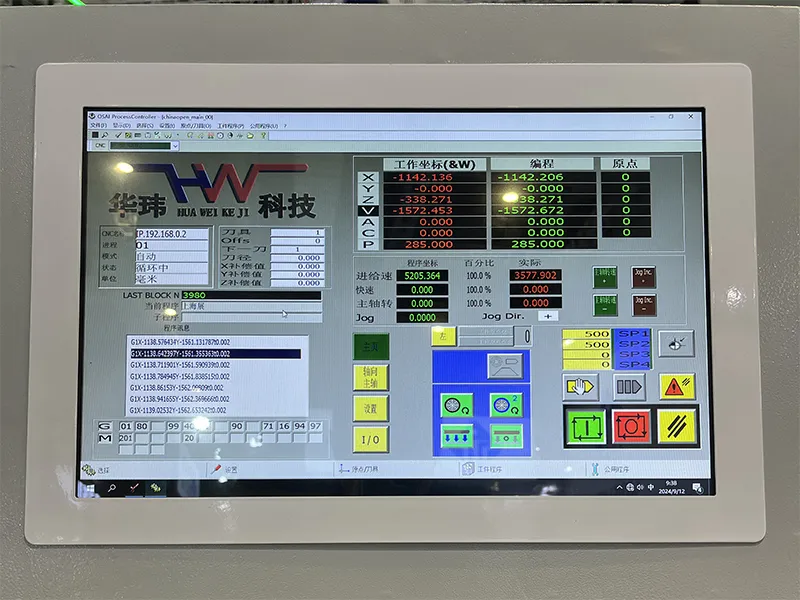

Its CNC control system provides powerful functionality, ensuring precise, high-speed processing for intricate and detailed work.

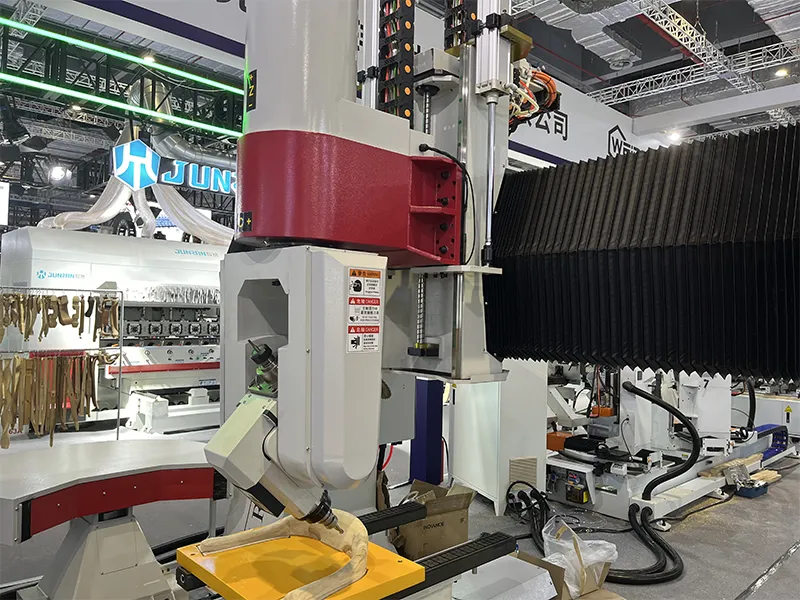

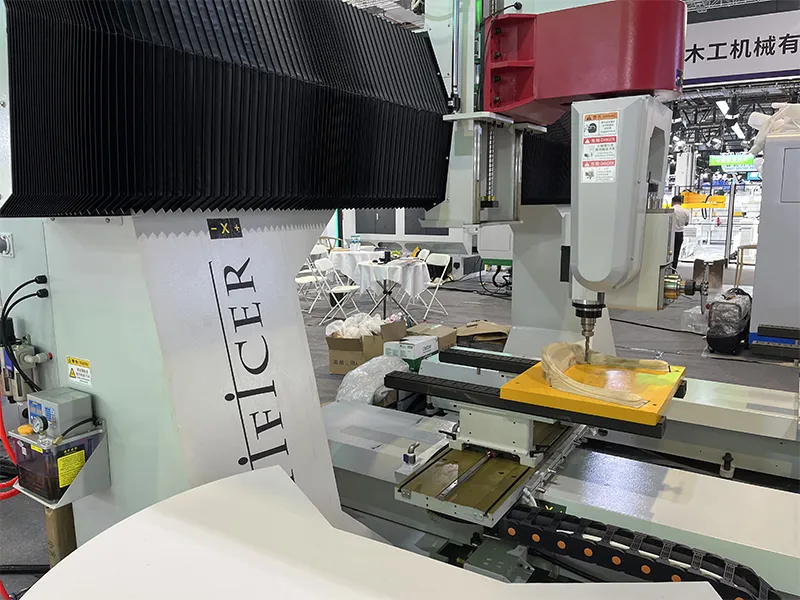

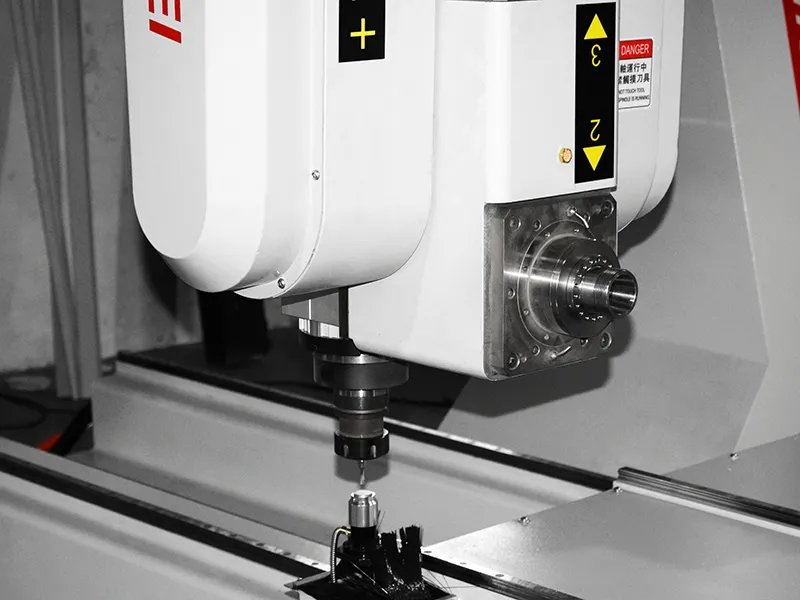

Capable of 5-axis simultaneous operations, including milling, engraving, drilling, and sawing, all in different directions within a single setup, increasing efficiency and precision.

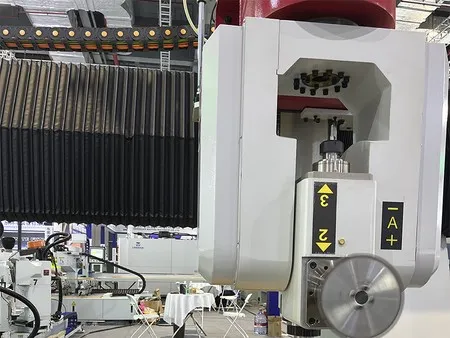

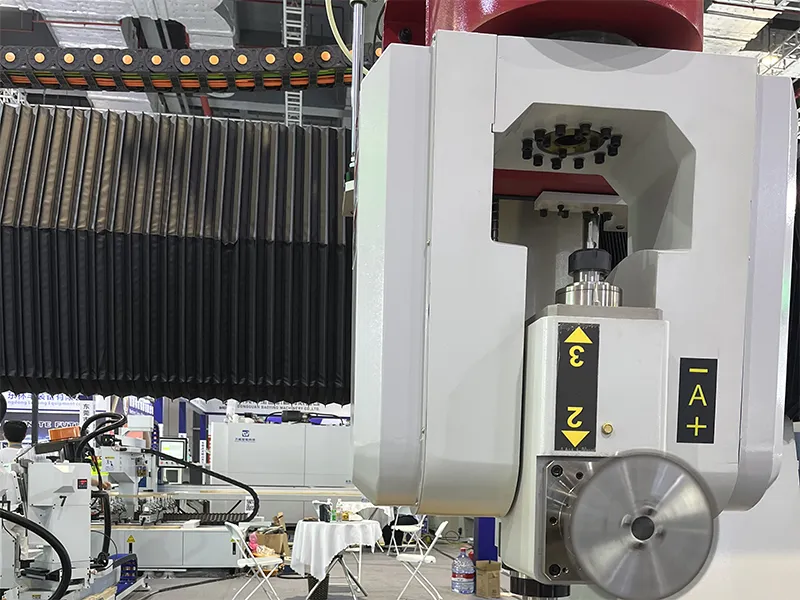

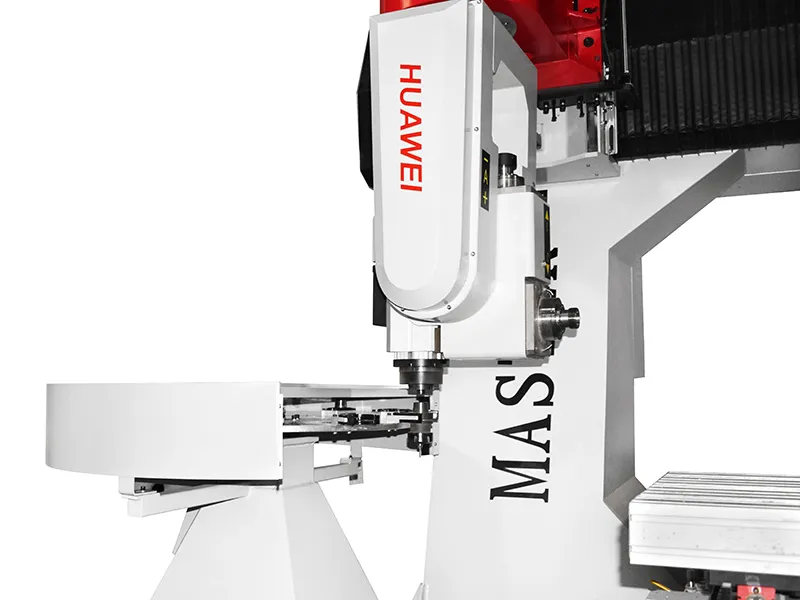

The 18-position automatic tool changer (ATC) allows for rapid tool switching between operations, enhancing flexibility in multi-step processes and reducing setup time.

Applications

This CNC machining center is widely used across multiple industries. In composite materials processing, it excels in trimming and drilling fiberglass molds, vacuum-formed parts, and other plastic or sanitary products, ensuring precision throughout.
In the mold industry, this CNC machining center is ideal for working with non-metallic molds such as fiberglass, wood, foam, and resin, offering detailed 5-axis machining for complex shapes.
For ceramics and sanitary ware, it handles the production of plaster molds and other plaster-based products with high precision and accuracy.

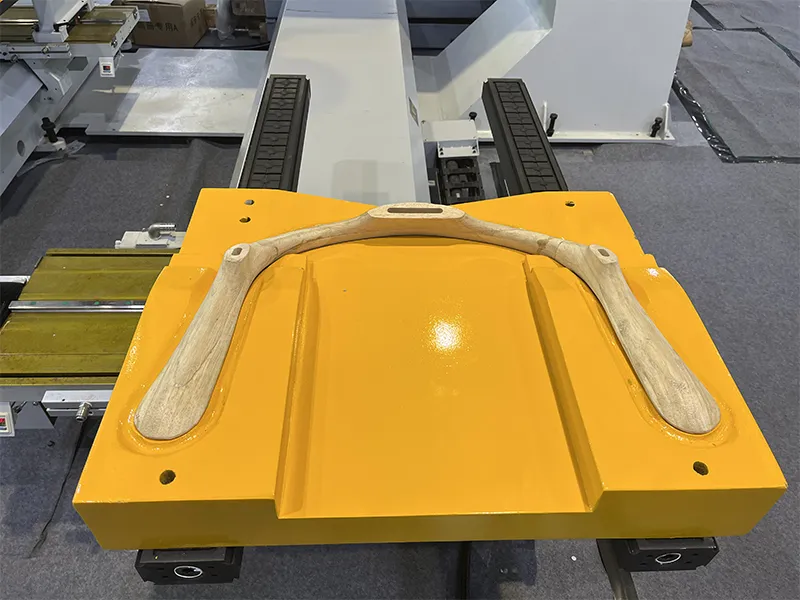

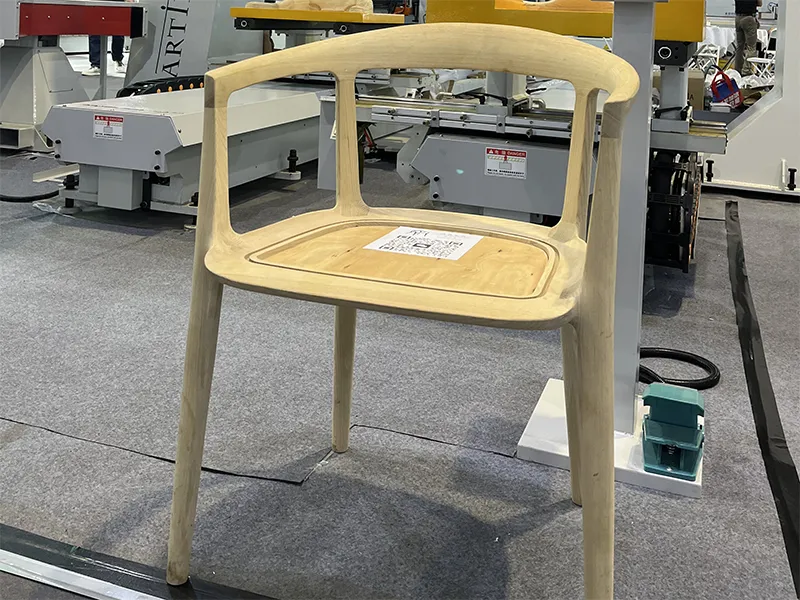

In the furniture industry, it supports the creation of solid wood furniture components like mortise and tenon joints, curved stair elements, and other intricate parts, simplifying complex 5-axis machining operations.

Specifications

Model	5AXIS-ATC1-TC2-A	5AXIS-ATC1-TC2-B
Working travel	X -axis: 4100mm Y-axis: 2200mm Z-axis: 880mm	X-axis: 4100mm Y-axis: 2600mm Z-axis: 880mm
Max. travel speed	X-axis: 80m/min Y-axis: 60m/min Z-axis: 60m/min A-axis (rotation axis): continuous rotation C-axis (rotation axis): ±400°	X-axis: 80m/min Y-axis: 80m/min Z-axis: 60m/min A-axis (rotation axis): continuous rotation C-axis (rotation axis): ±400°
Servo motor	X-axis 3.0kW, Y-axis 1.5kW, V-axis 1.5kW, Z-axis 3.0kW, A-axis 1.0kW, C-axis 1.5kW, P-axis 1.0kW	X-axis 3.0kW, Y-axis 1.5kW, V-axis 1.5kW, Z-axis 3.0kW, A-axis 1.0kW, C-axis 1.5kW, P-axis 1.0kW
Spindle speed	3000-18000rpm	3000-18000rpm
Spindle power	14.4kW+9.6kW×2	14.4kW+9.6kW×2
Working table size	1200×1200mm×2	1200×1600mm×2
Control system	Osai CNC control	Osai CNC control
Transmission mechanism	Rack & pinion transmission + ball screw transmission	Rack & pinion transmission + ball screw transmission
Vacuum pump power	4kW×2	4kW×2
Vacuum flow	160m³/h	160m³/h
Voltage	AC380V/50Hz	AC380V/50Hz
Weight	Approximately 7000kg	Approximately 8000kg
Dimensions (L×W×H)	5400×3500×3800mm	5400×3900×3800mm
