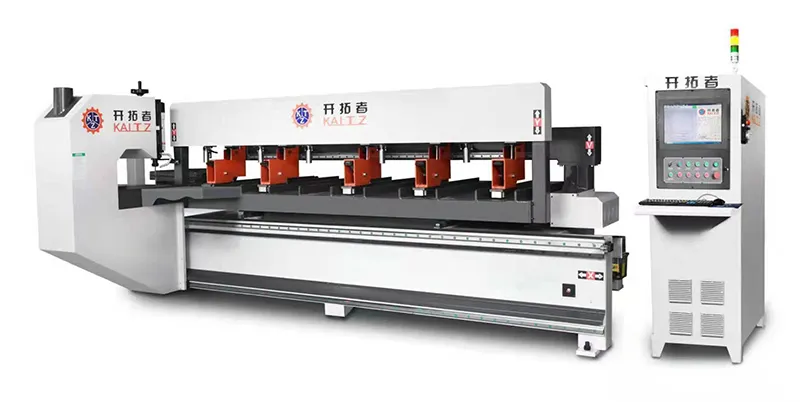

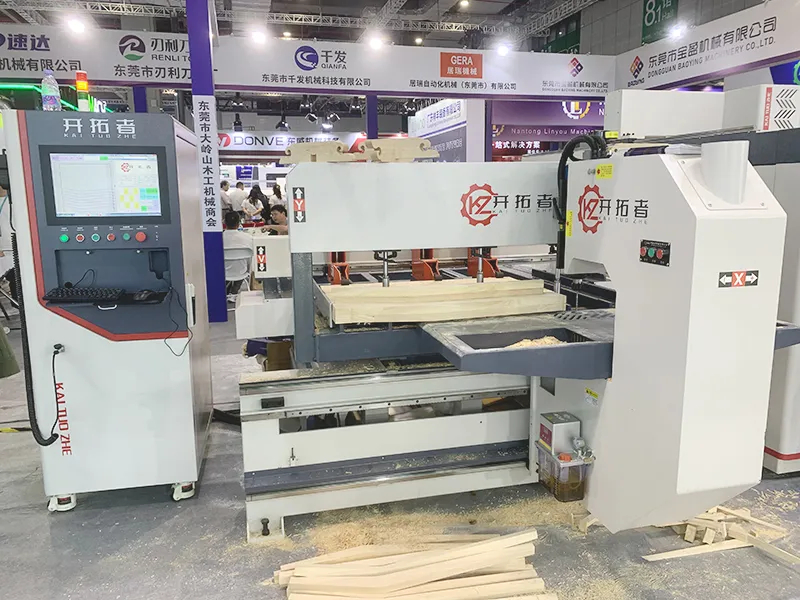

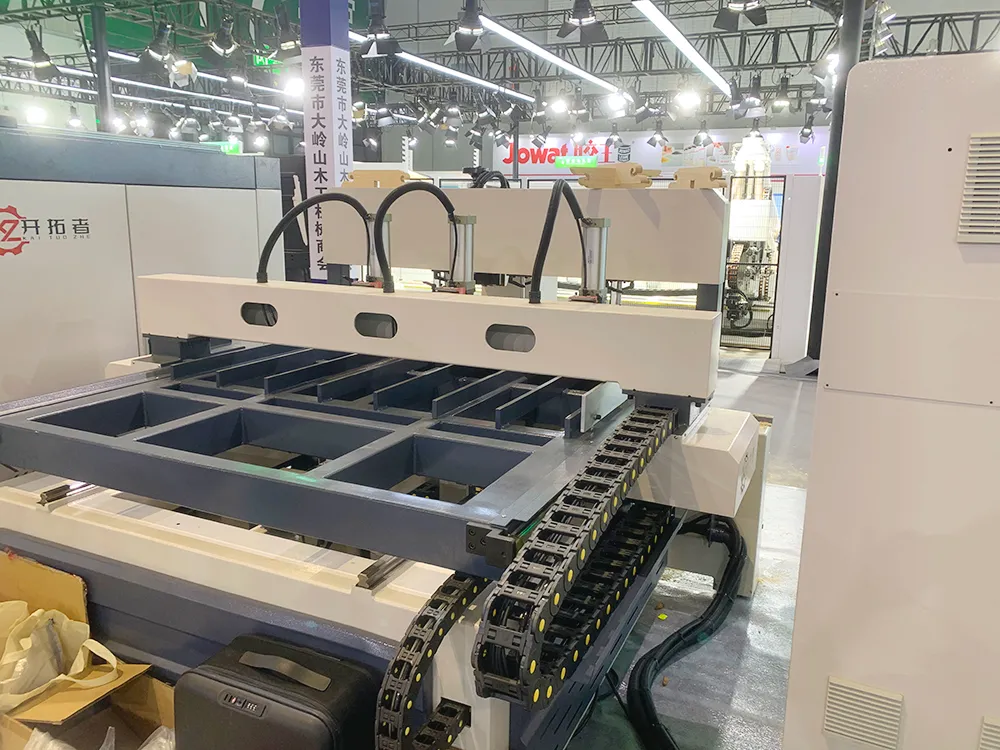

CNC wood cutting machine

Multi-head CNC wood routers are designed for cutting solid wood, providing a more efficient solution compared to traditional band saws. It overcomes common challenges, such as cutting corners and achieving smooth surface finishes, by automating the entire process. The wood processing machine eliminates the need for manual steps like line marking, manual cutting, and milling, which significantly reduces labor costs and minimizes the risk of accidents, all while increasing production efficiency. This CNC machine supports DXF format, allowing flexible layout designs and multi-angle cutting, making it easy to adapt to various project needs. It is also user-friendly, requiring only half a day of training for workers to operate it independently.

Specifications

Model	CNC-1500A	CNC-2000A	CNC-2500A
Dimensions (L×W×H)	2300×2800×1600mm	3200×2800×1600mm	3400×2800×1600mm
Total weight	2000kg	2500kg	3000kg
Throat depth	500mm	500mm	500mm
Max. processing length	1500mm	2100mm	2500mm
Max. processing width	1300mm	1300mm	1300mm
Max. processing thickness	0-130mm	0-130mm	0-130mm
Idle speed	0-15m/min	0-15m/min	0-15m/min
Processing speed	0-12m/min	0-12m/min	0-12m/min
Power	20kW	20kW	20kW
Spindle speed	10000-18000rpm	10000-18000rpm	10000-18000rpm

Applications

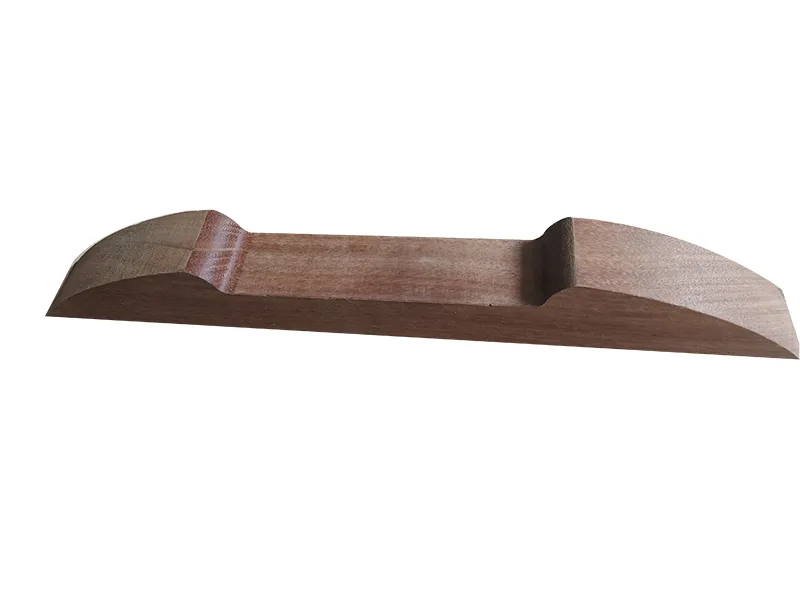

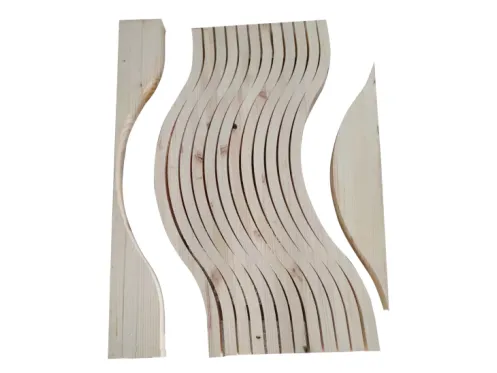

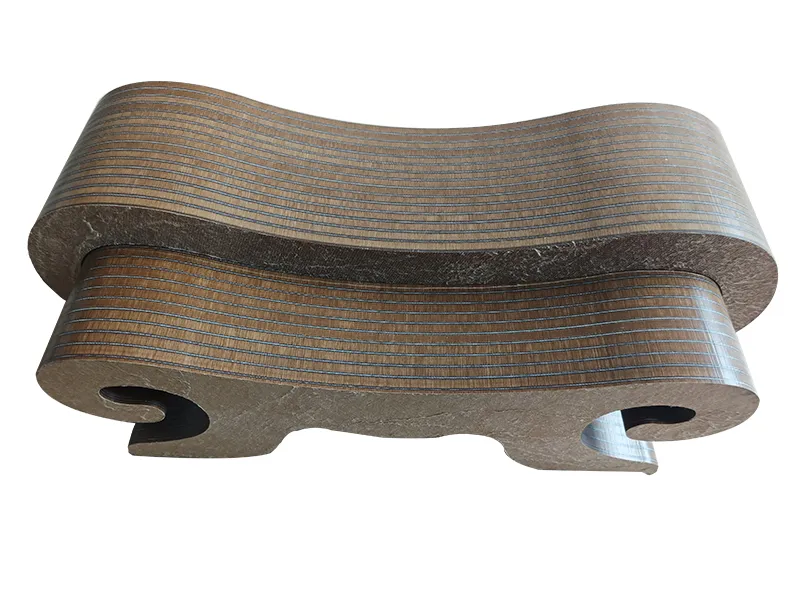

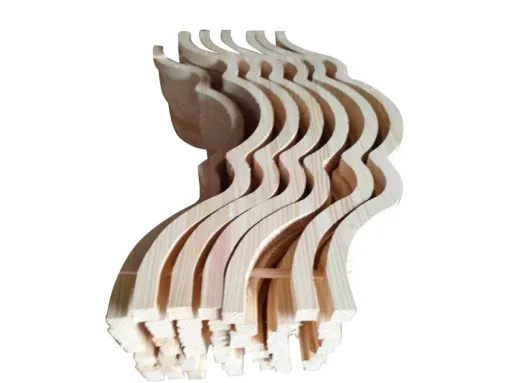

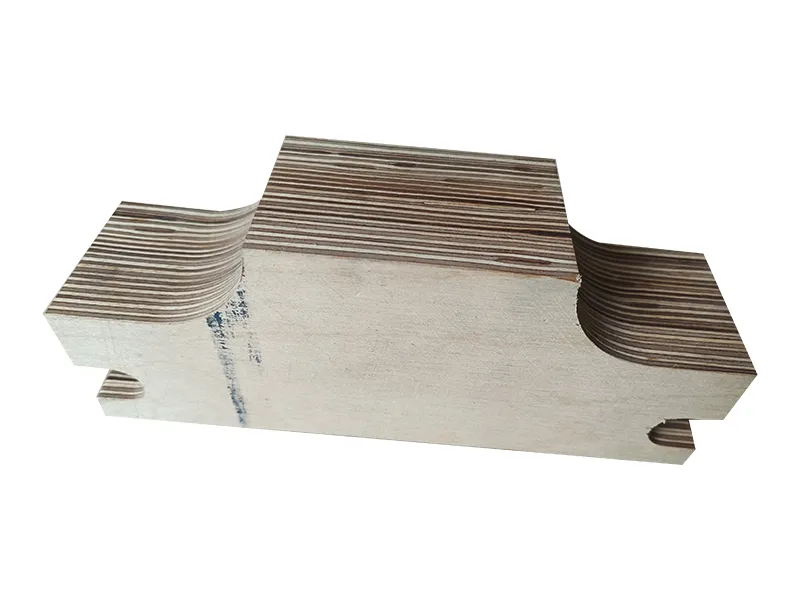

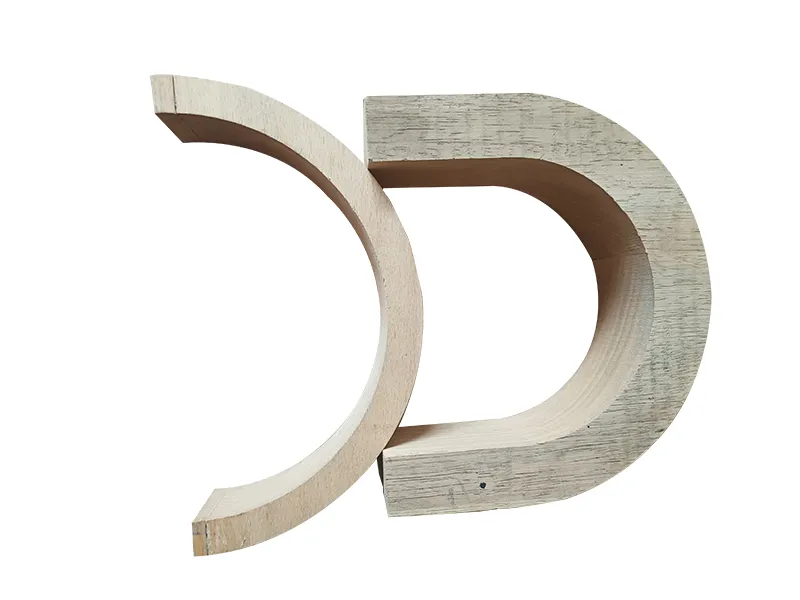

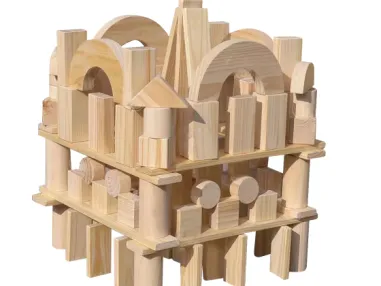

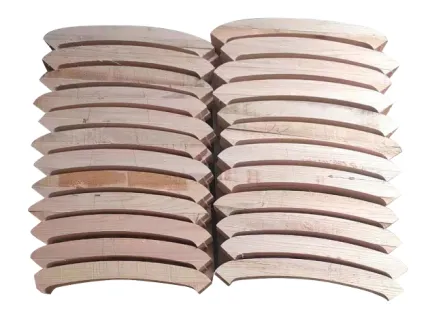

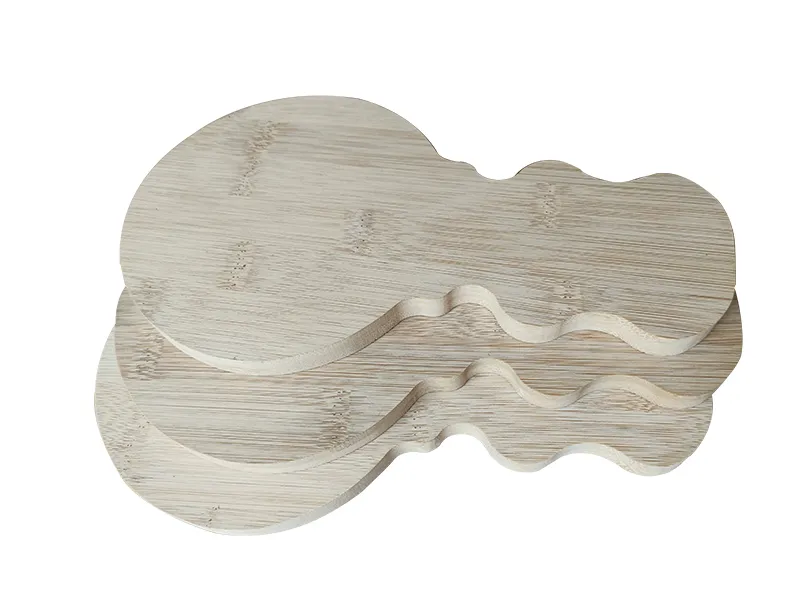

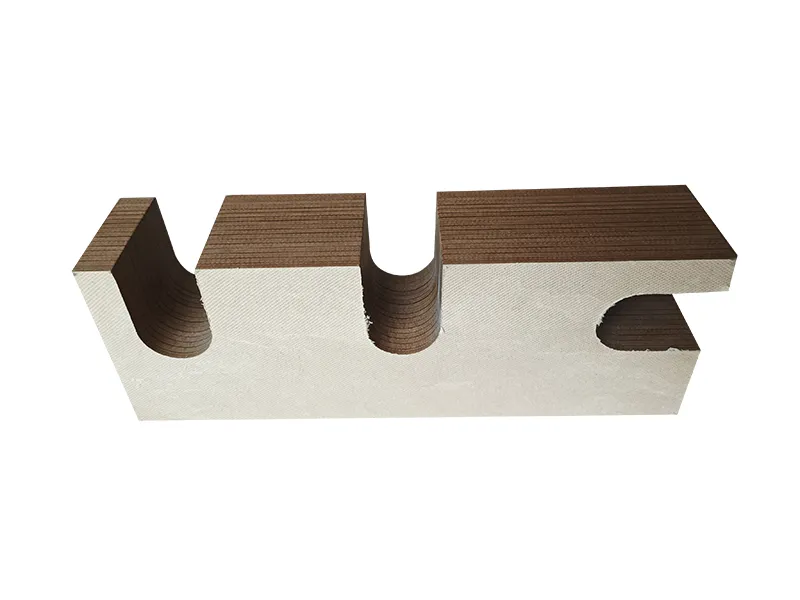

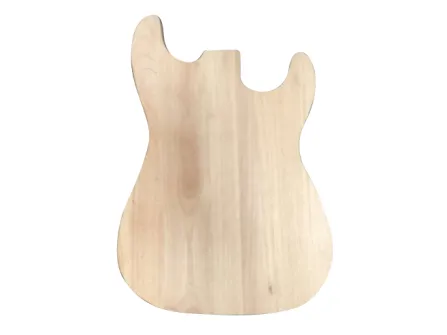

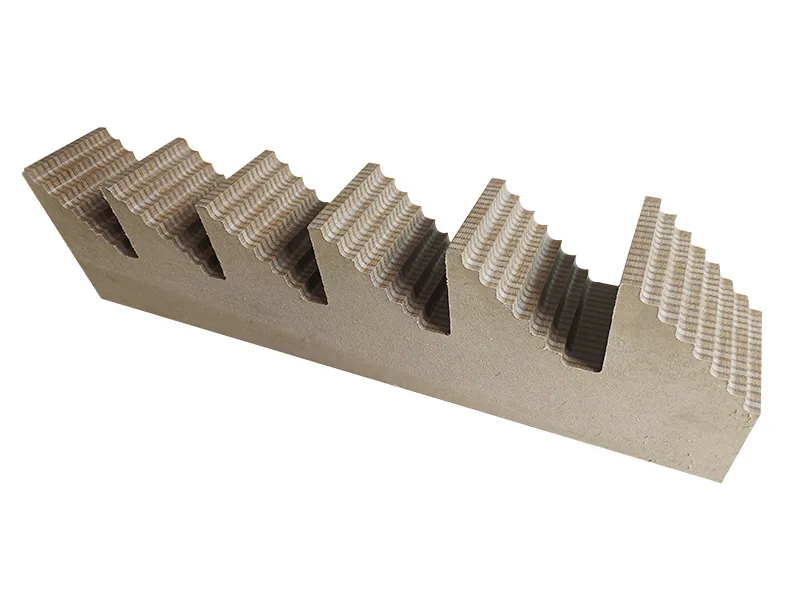

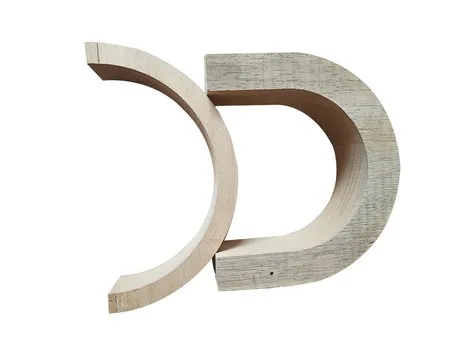

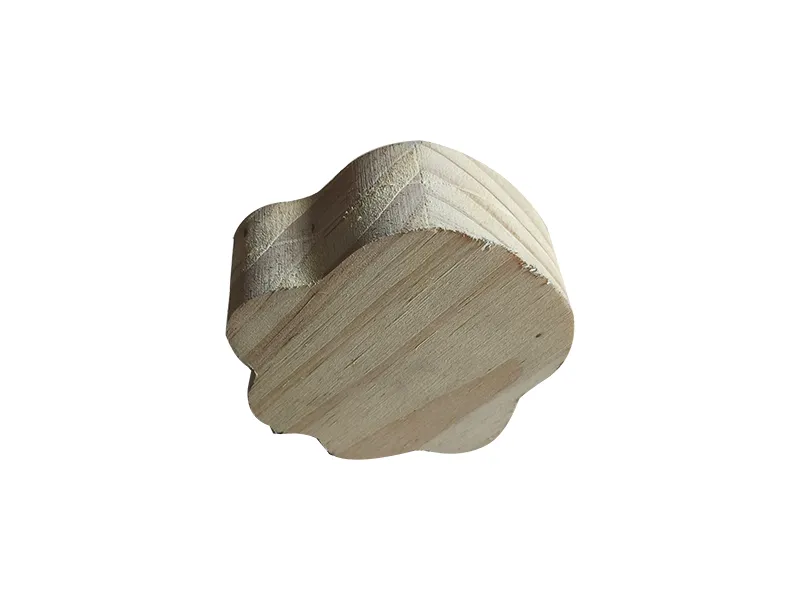

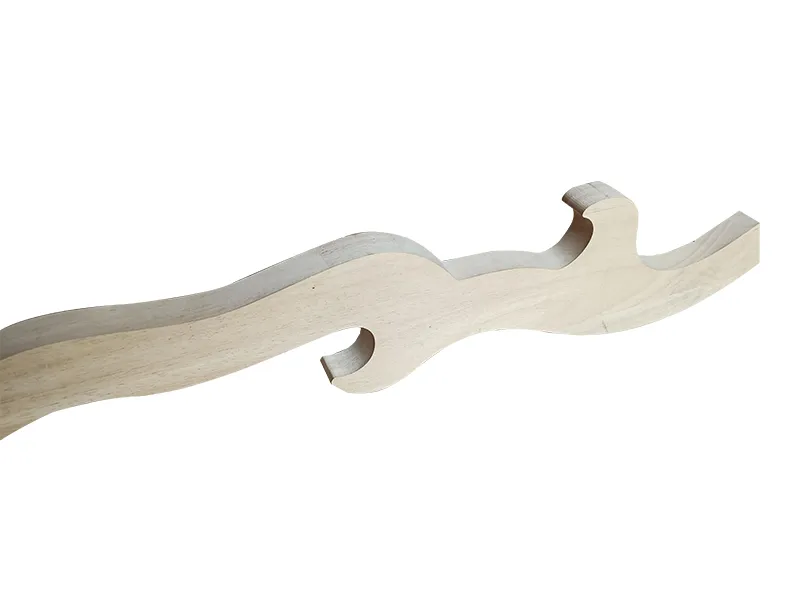

Ideal for processing plywood, MDF, and solid wood boards, among other materials.

Features

High-quality components and a custom-developed control system ensure reliability and ease of use.
The sturdy design ensures smooth cuts, free of imperfections, even at high speeds.
Fully automated material feeding and positioning reduce the need for manual intervention, helping companies save on labor costs.

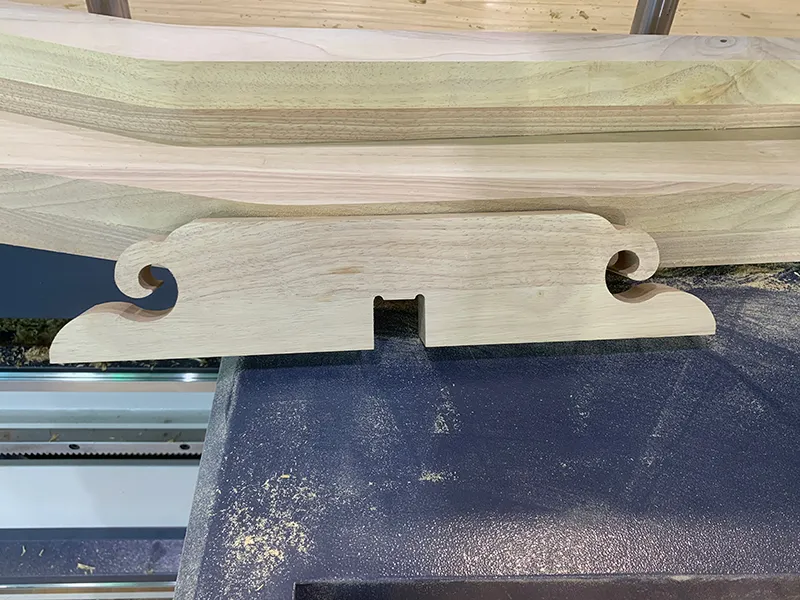

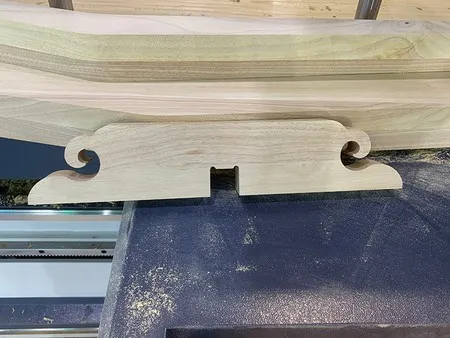

Capable of cutting custom shapes and angles in a single pass, meeting a wide range of production needs.

Configurations

Guide rail: ROUST (Germany)
Ball screw: HIWIN (Taiwan)
Servo system: Inovance
Electrical Components: Schneider Electric (France)
Inverter: Folinn
Spindle motor: Spindle for changing tools of machining center (upper & lower spindle)
Machine body: Welded tempered steel structure
Computer: Industrial integrated computer

Main Components

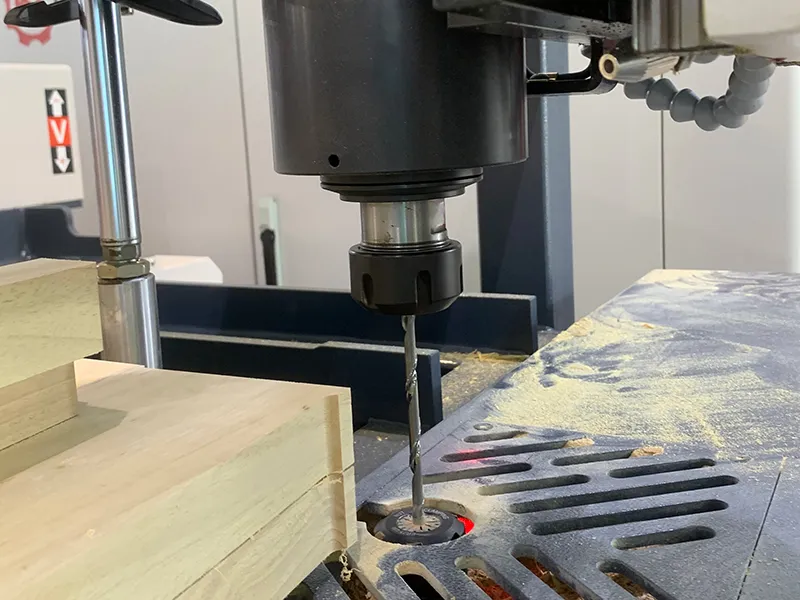

This CNC wood router is equipped with an air-cooled high-speed spindle from one of the industry’s top providers. The dual spindle motor system ensures stable rotation during operation, resulting in consistently high-quality and precise processing.

With the help of multiple pneumatic cylinders, materials are securely clamped and pushed through the router. The advanced clamping system enhances stability and even allows partial extension through the press at later stages, maximizing material usage and reducing waste.

The electrical system is meticulously designed for safety, functionality, and ease of maintenance, ensuring reliable power delivery. It incorporates Schneider Electric components, recognized globally for excellence, and a Taiwan Delta servo drive system, which delivers precise control and positioning, placing it at the forefront of transmission technology.
