5-Axis CNC Machining Center

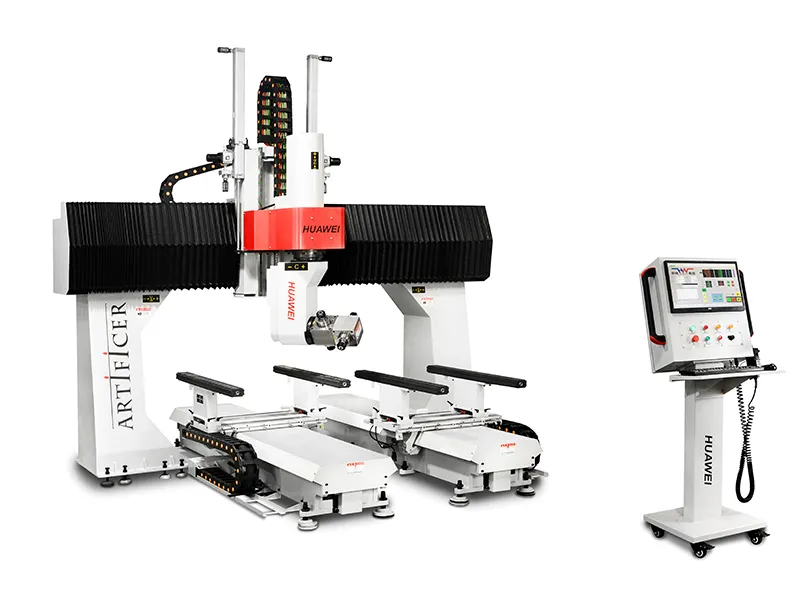

Gantry CNC milling machine for processing complex parts of wooden furniture

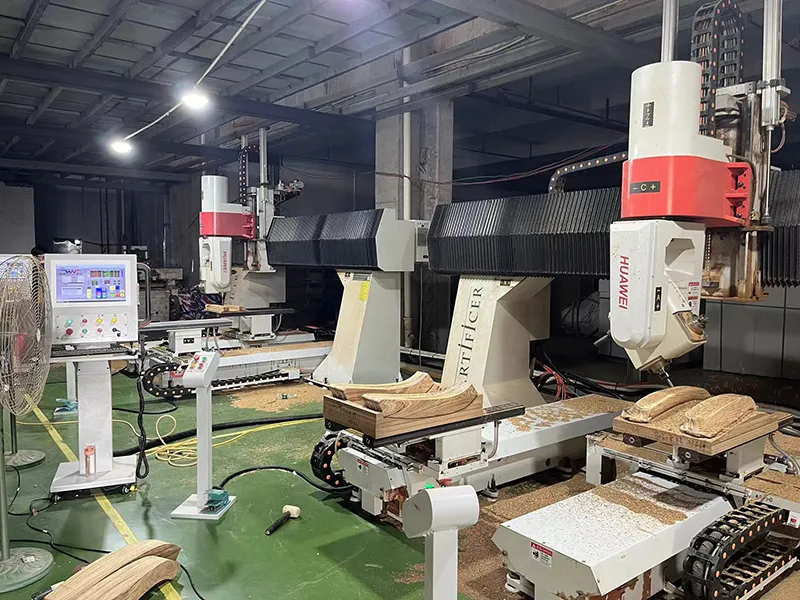

5-axis CNC machining centers offer precision and versatility in the processing of complex wooden furniture components. Available in single-arm, light-duty and double-arm, heavy-duty models, these CNC woodworking systems are equipped with user-friendly simulation software that reduces programming time and improves production efficiency. This wood processing equipment integrates with traditional 5-axis programming tools, making it a powerful solution for manufacturers working with intricate designs in solid wood furniture, bentwood chairs, acoustic systems, toys, and decorative items.

Request a Quote

Features

Self-developed simulation software eliminates unnecessary tool paths and pauses, streamlining the programming process. The system is compatible with Italian 5-axis programming files and supports a wide range of software, such as UG, alphacam, and PowerMill.

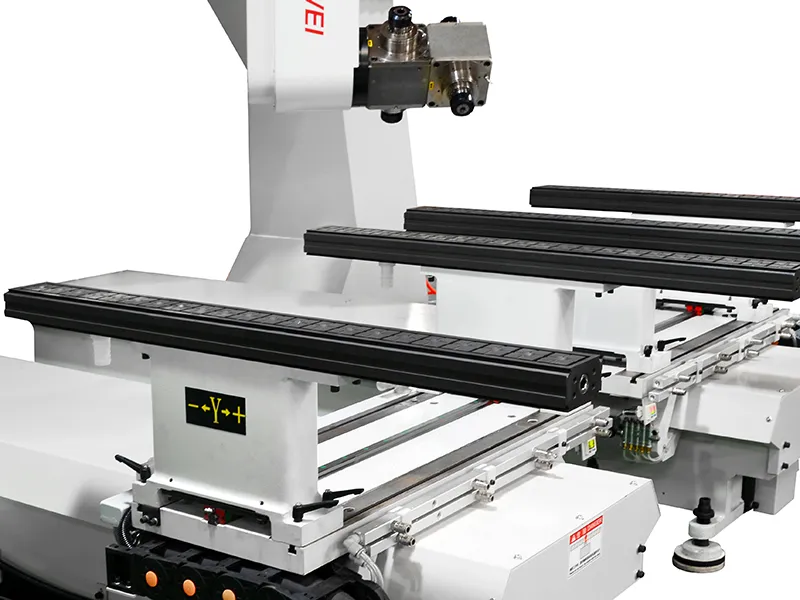

The adjustable workbench allows for quick repositioning of clamps and fixtures, supporting pneumatic clamping systems. This flexible setup enables fast switching between surface and curve milling, optimizing production speed.
The system includes 3D simulation technology, allowing operators to visualize and prevent potential machine collisions, cutting parameter errors, and interference issues, enhancing operational safety.
Advanced 3D visualization and virtual reality software helps verify and detect potential issues in the NC program, making it an essential tool for producing complex wood furniture pieces and intricate designs.
Unlike traditional 5-axis simulation systems, this software is designed to be simple and intuitive. Operators with basic 3-axis CNC programming experience can quickly adapt, while beginners with only CAD knowledge can learn the system in a short time and start production efficiently.

Specifications

Model	ARTIFICER-TC2-TC2 (Single Arm, Light Duty)	ARTIFICER-TC4 (Double Arm, Heavy Duty)
Working travel	X-axis: 2650mm Y-axis: 2200mm Z-axis: 850mm	X-axis: 3500mm Y-axis: 2200mm Z-axis: 850mm

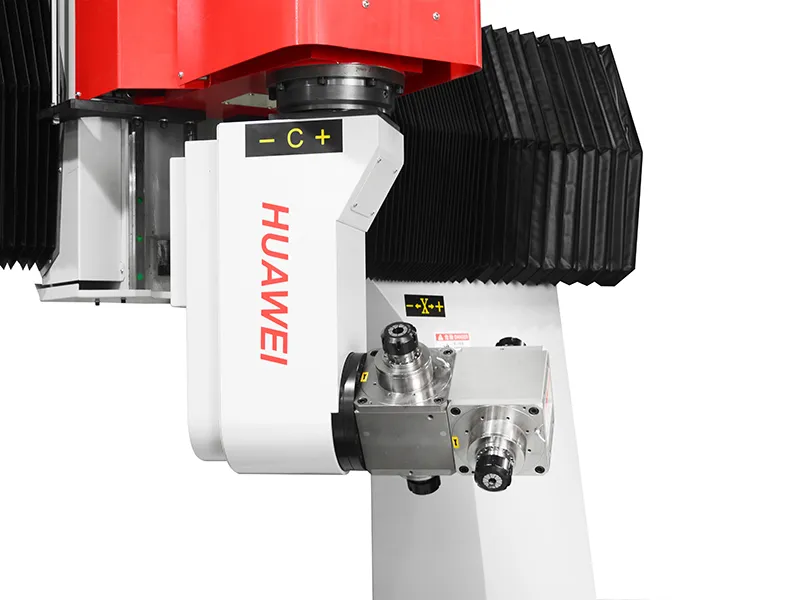

Max. travel speed	X-axis: 50m/min Y-axis: 50m/min Z-axis: 50m/min A-axis (rotation axis): continuous rotation C-axis (rotation axis): +/-400°	X-axis: 50m/min Y-axis: 50m/min Z-axis: 50m/min A-axis (rotation axis): continuous rotation C-axis (rotation axis): +/-400°
Spindle speed	3000-18000rpm	3000-18000rpm
Working table size	1130×900mm×2	1130×1170mm×2
Weight	Approximately 6000kg	Approximately 6000kg
Dimensions (L×W×H)	3650×3350×3600mm	4750×3350×3650mm
