WD-SC-4500-5T+5T

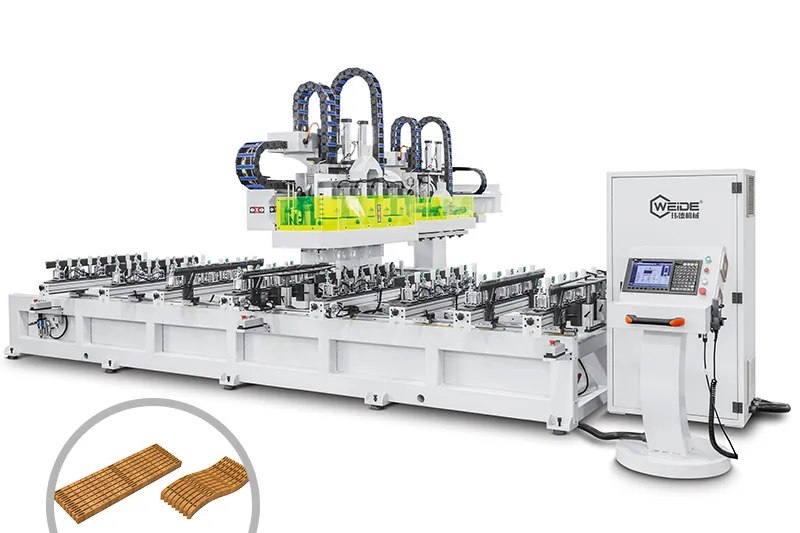

5-Head CNC Mortising Machine

CNC wood processing machine for mortising and drilling of shaped wooded workpieces

Optimized for handling complex mortise and tenon joints, the 5-head CNC mortising solution delivers high-speed and precise performance. The dual-station configuration allows continuous operation, as one set of workpieces is processed while another is being prepared, ensuring consistent productivity. The integrated lubrication system efficiently supplies oil to all necessary components, promoting smooth function and extending the woodworking system's lifespan.

Features

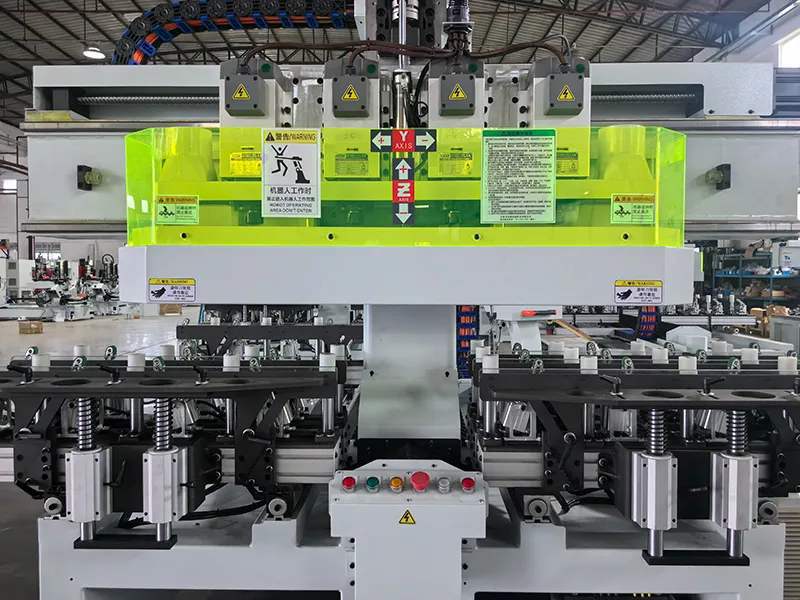

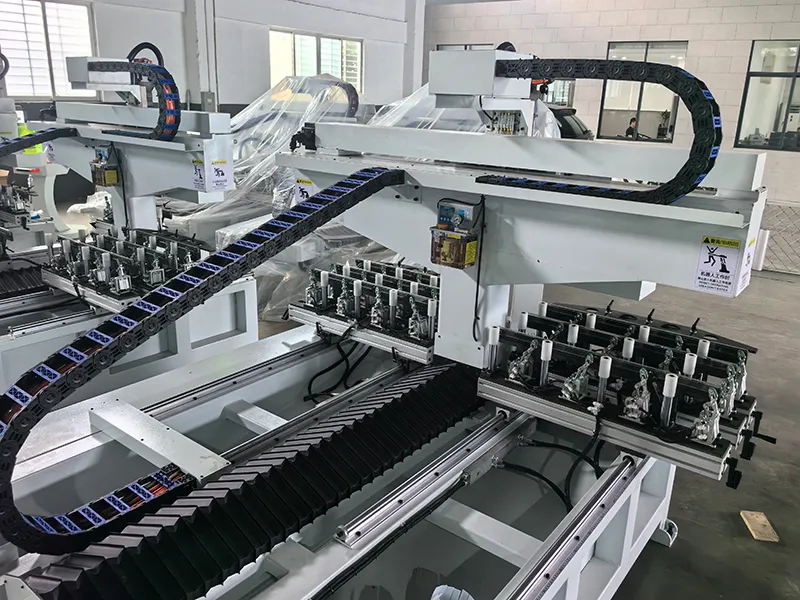

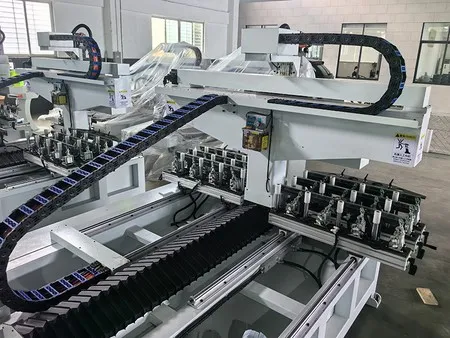

The 5-head dual-station design enables simultaneous processing of two sets of workpieces, minimizing downtime and increasing output.
A user-friendly tool alignment system automatically generates programs based on reference points, eliminating the need for manual programming.

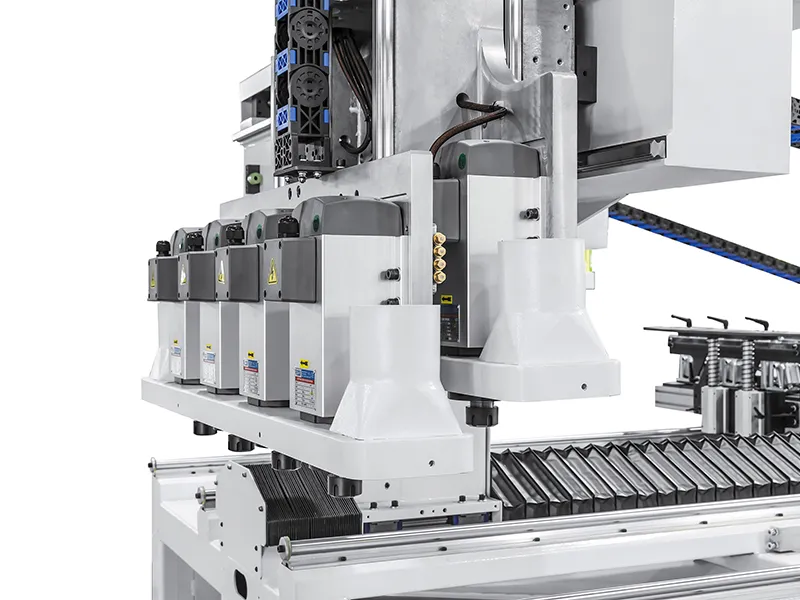

Equipped to handle multiple tasks in a single setup, it can complete various mortise shapes and drill holes using two different tools simultaneously.
The precision oil distribution system ensures that critical components receive optimal lubrication, reducing wear and maintaining operational stability.

Specifications

Max. processing length	2200mm
Max. processing width	300mm
Max. processing height	60mm
Working pressure	0.5-0.7MPa
Voltage	380V
Saw blade spindle speed	3000r/min
Saw blade spindle power	2.2kW×1
Main spindle speed	12000r/min
Main spindle power	5.5kW×1
Total power	12kW
Worktable servo motor power	0.85kW×1
X-axis servo motor power	0.85kW×2
Y-axis servo motor power	0.75kW×1
Feeding servo motor power	0.75kW×1
Dimensions (L×W×H)	4400×3000×1600mm
Weight	2500Kg
