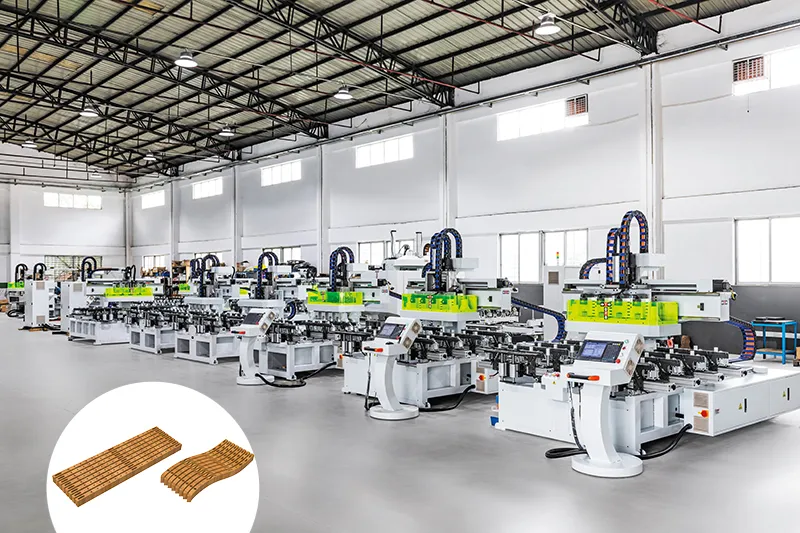

4-Head CNC Mortising Machine

Request a Quote

WD-SC-2200-4T

CNC wood processing machine for mortising and drilling of shaped wooded workpieces

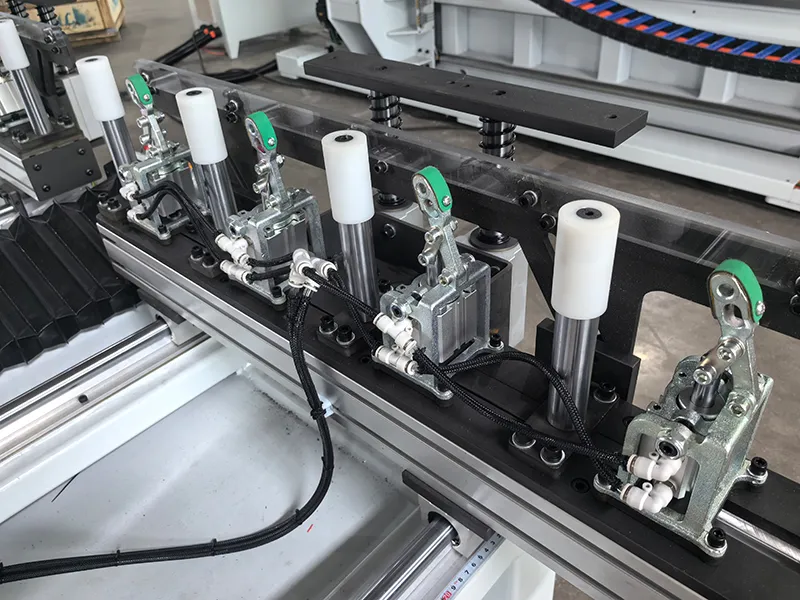

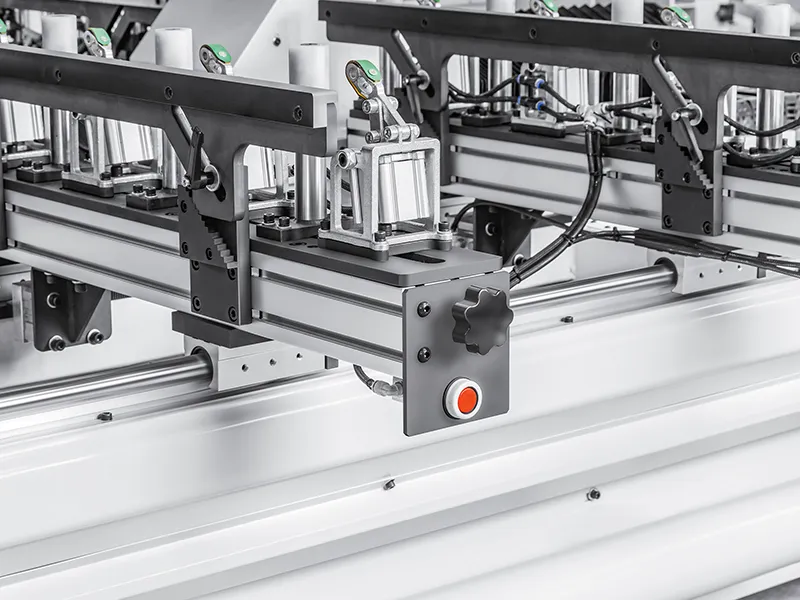

Optimized for high-precision mortising and drilling, 4-head CNC mortising machines are designed to handle complex shaped wooden workpieces with speed and accuracy. Equipped with a high-speed spindle motor capable of reaching 180,000 r/min, it ensures smooth and efficient cutting. These wood mortising machines feature a dual-station design, allowing one set of workpieces to be processed while another is being loaded or unloaded, thus eliminating downtime and greatly increasing productivity. Their pneumatic rack system ensures secure positioning of the workpieces during operation, while the quick-release tooling system, complete with a U-shaped slot, allows for fast and easy tool changes, further enhancing operational efficiency and reducing downtime.

Features

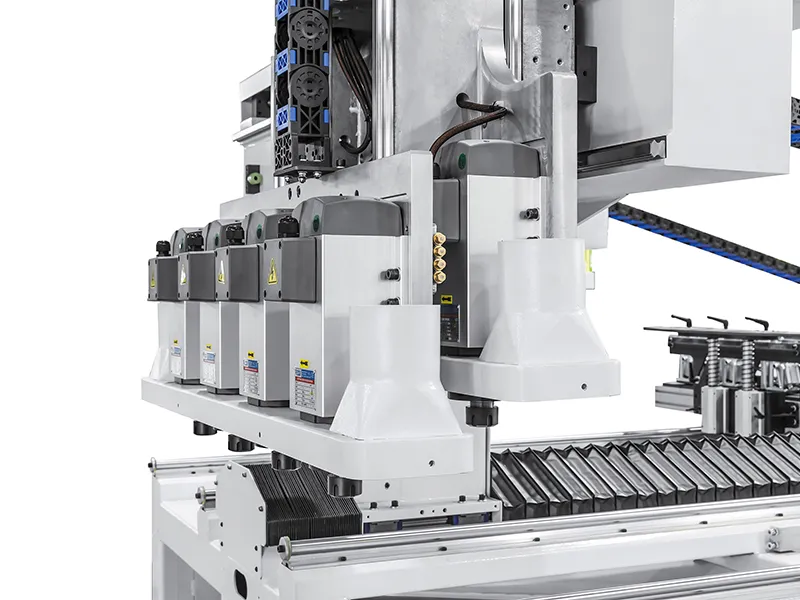

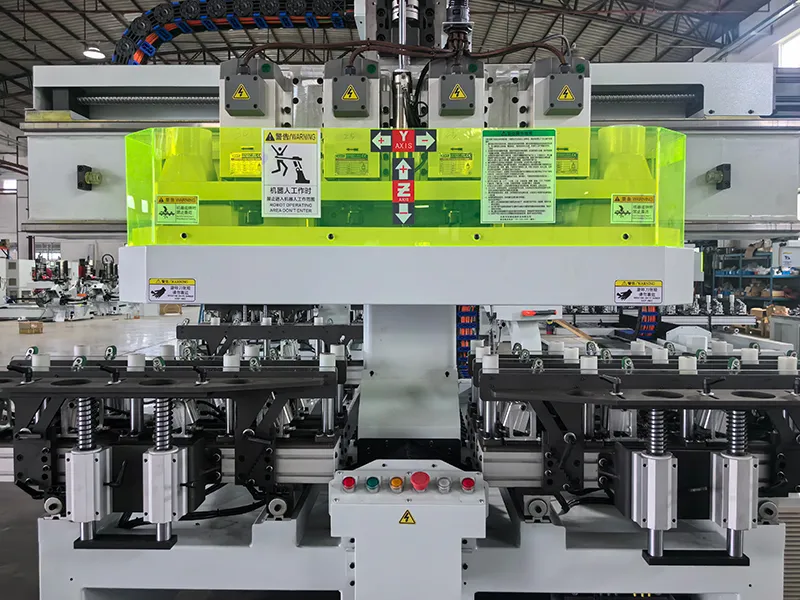

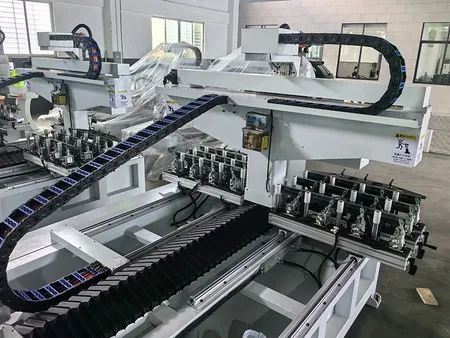

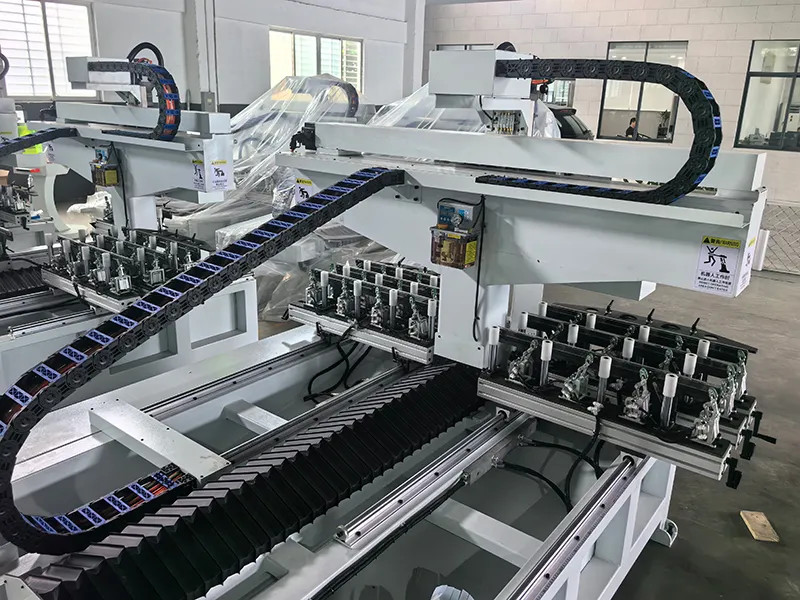

Uses a 4-head dual-station milling system that allows two sets of workpieces to be processed simultaneously, ensuring continuous production without interference.
Operators benefit from a user-friendly tool positioning design where no programming is required. By simply setting the reference point, the mortising machine automatically generates the processing program, simplifying the operation.

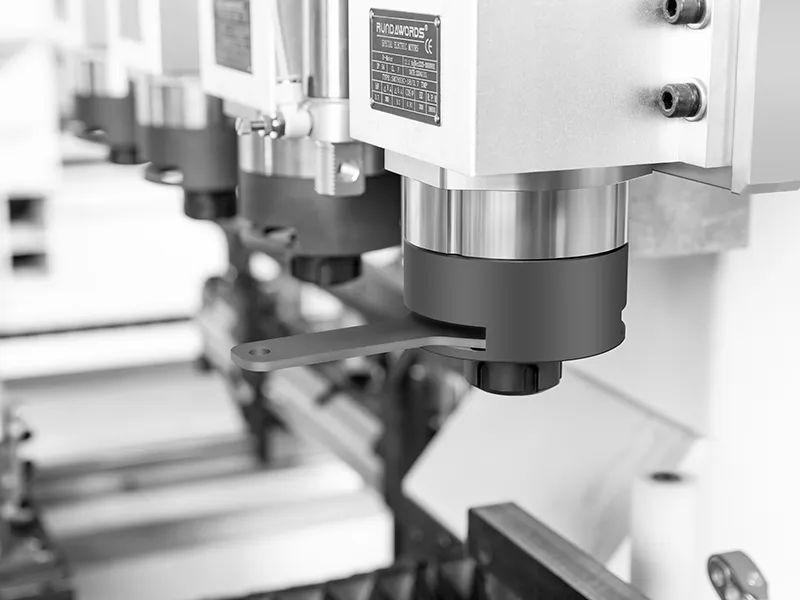

A quick-release tooling system featuring a U-shaped slot enables fast and convenient tool changes, further improving efficiency and minimizing downtime during production.
Ensures precise mortising and drilling by completing the process with a single setup, which guarantees consistent quality in the final product.

Specifications

Max. processing length	2200mm
Max. processing width	140mm
Max. processing thickness	180mm
Working pressure	0.5-0.7MPa
Voltage	380V
Spindle speed	18000r/min
Total power	17.8kW
Spindle power	3.7kW×4
X-axis servo motor power	1.3kW×1
Y-axis servo motor power	0.85kW×1
Z-axis servo motor power	0.85kW×1
Dimensions (L×W×H)	3500×2400×2000mm
Weight	2000kg
